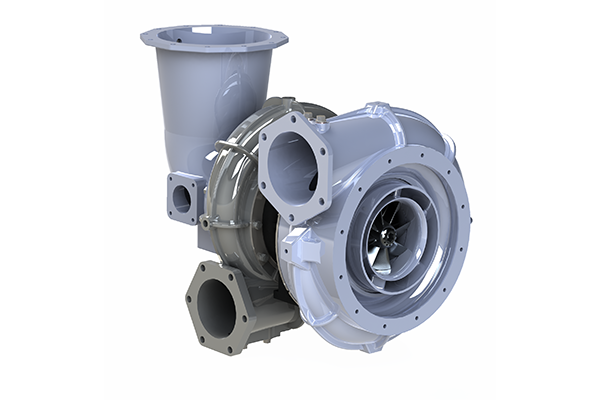

The JTH mixed flow turbocharger comprises a single stage centrifugal compressor and a mixed flow turbine with inboard film bearings. It is developed for four-stroke medium-speed and high-speed diesel engines, with an output range from 350 kW to 3200 kW.
Features
> Offering pressure ratio as high as 4.7, and turbocharging efficiencies up to 67% with wide flow range；
> Serial products, applicable for different diesel engines;
>Inboard bearing using engine lubricating oil with good reliability
> Compact and less parts, convenience for assembly and maintenance
> Applicable for heavy oil and dual-fuel engines;
> Various and customized interface sizes;
> Variable geometry turbine(Option)
Adress: Jiangjin,Chongqing,China
Telephone: 023-47221467 Fax: 023-47221009
E-mail: jtmail@jtp.com.cn
